Black and white ultrasound scan machine

Features

- Line scanning can be applied with no flash interference.
Rich image layers, exquisite granules, clear profile, vivid Tri-dimension, high resolution.
- Cine Loop system
128 frames consecutive forward or retract image display.
Both automatic and manual modes available to get optimized images.
- Near & far field digital adjustment
Digital adjustment applied on near & far field adjustment to get realistic images.
Displaying adjustment result clearly.
- Wide Frequency band, 4 variable frequencies.
Adjust probe frequency with one key operation.
Displaying current frequency on the screen.
Which enable the doctor to get optimized image according to different demands and patient figure.
- 8 Segment TGC adjustment
8 segment intelligent TGC adjustment, high resolution images.
- Image Zoom in and Image Partial Magnification.
Zoom in: 1.0, 1.2, 1.5, 2.0
Amplify interested area in the image and show particular details, to see sampling tissue clearly.
- Image permanent Storage
Built in flash memory storage,
Optional USB port for Image storage.

            Ultrasound scan machine 3D

Features

- High-resolution 17-inch LCD monitor with wide angle of view.
- Omnidirectional arm, together with a rotatable and height-adjustable control panel.
- Designed with intuitive menu adjustment control and functional button layouts.
- The transducers are ergonomically designed to fit the hand, light-weight, and with flexible cables.
- They can be quickly switched among four transducer sockets.
- The USB ports and DVD-R/W are easily accessible, allowing versatile and easily accessible information flow.

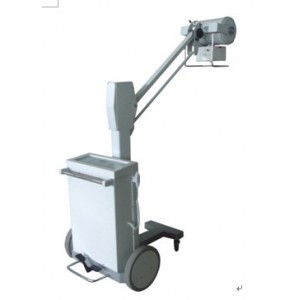

            XRAY Machine RF100BY

Features

Power supply
- Voltage: 180-240 V
- Frequency: 50Hz
- Internal resistivity <1.0O
- Current 35A instant
- Rating = 7k VA

Photography:
- Voltage: 50-100 kV
- X-ray current 16mA. 32mA 63mA 100mA
- Time 0.08s ~6.3s
- X-ray tube focus 4.3mm X4.3mm
- Maximum remote control distance: 7m
- Maximum height of focal spot from floor>1880 mm
- Minimum height of focal spot from floor <520 mm
- Columns turning angle: ± 45
- Collimator: Maximum film size at 650mm focal distance: 350 mm X 350 mm
- The net weight of the unit: 150kg Gross Weight: 240kg

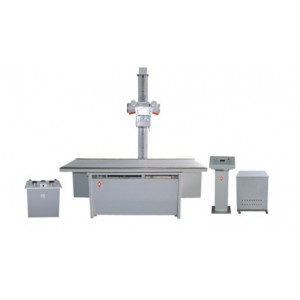

            XRAY Machine RF300BZ

Features

General Radiographic examination and ray-filter photography
- X-ray tube: Model XD51-20.40/125
- Small focus:1ױmm
- Big focus:2ײmm
- Single bed with single bulb
- High visual and operational Console with tube voltage ,tube current, and photographic time displayed on the LCD monitor
- Prestore 8 kinds of photograph parameters and select, modify,store the parameters under condition of choice.
- Auto power and voltage control,kv continuous adjustable ,auto Fault Alarm
- Premier high voltage with high power SCR zero control circuit
- X-RAY sub assemblies is equipped with Tangential-pipe kits
- photograph bed, column, Vibration Filter limiter integrated equipment without necessity of up-and-down tunnel
- photography bed can be moved both laterally and vibrally Column can turn 4*90
- Function of load chains, exposure time control ,Start and stop repeating mode, Preheat filament, sub assembles temperature control, and so on.

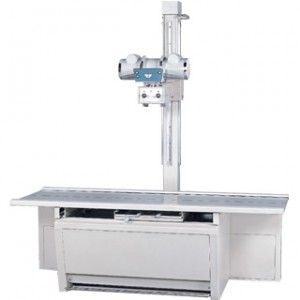

            XRAY Machine RF5000B

Features

Usage: This x ray machine is used to photograph patient's esophagus, chest, gastrointestinal, abdomen,
limbs etc for common radiography, Beam Limiting Device radio-graph and high KV radiography.

Technical Specification
- Power Output: 40KW
- X-ray Tube: Rotary anode
- Focus: 1.0mm
- Thermal Capacity: 140 KJ
- Commute Method: Full Wave Commutation
- Tube Voltage: 50~125KV, interval 1KV
- Tube Current: 32mA(min) ~500 mA (max) Adjustable
- With different grades
- Exposure Time: 0.020s~4.000s(23 grades)
- Bucky grid: Grid Density: 40L/cM
- Grid Ratio: 10: 1
- Focus Distance: 120cm
- Stationary Dimension: 15" נ18"
- Power Supply: Two Phases with Four Lines(380V± 10%,50Hz Inner-resistance= 0.3O Capacity = 40KVA)

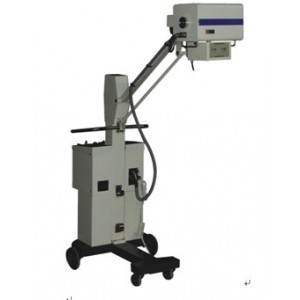

            XRAY Machine RF70A

Features

- This X-ray apparatus features fullwave rectification and modular X-ray tube head.
- The frame of the unit is of cantilever construction, and is compact in design and easy in movement.
- The machine can be used for Radiography in hospital wards or operating rooms.
- Voltage: 180-240V Frequency: 50Hz
- Internal resistance: = 1O Rating: 5k VA
- Current: Maimum15A for radiography
- Time: 0.08 to 6.32 steps electronic
- Maximum height from X-ray tube focus to floor>1820mm
- Minimum height from X-ray tube focus to floor<550mm
- Collimator: Maximum film size at 1000mm
- Focal distance: 430נ430mm
- Maximum remote control distance: 6m
- X-ray tube focus: 2.6נ2.6
- Unit moving force: < 5kg
- Net weight of the unit: 90kg
